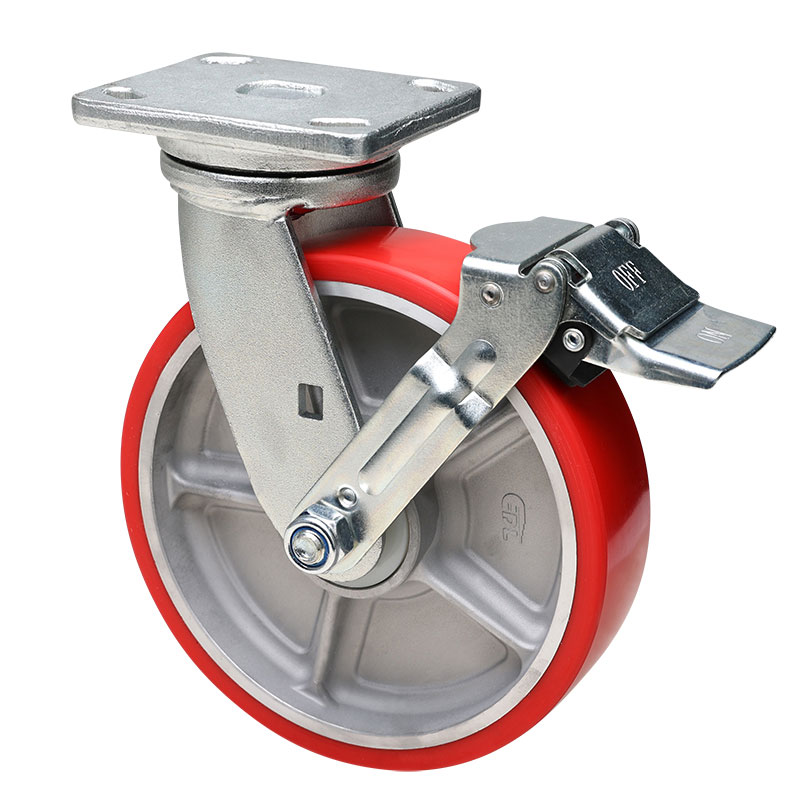

EDL Heavy 8" 800kg Plate Iron Wheel Brake TPU Caster 78128E-788-86A/E
- Product Category：78 Series（700-1000kg）
- Item NO.：78128E-788-86A/E
- Wheel Diameter：8"(200mm)
- Mounting Type：Plate_Brake
- Tread Material：TPU
- Dynamic Load：800kg

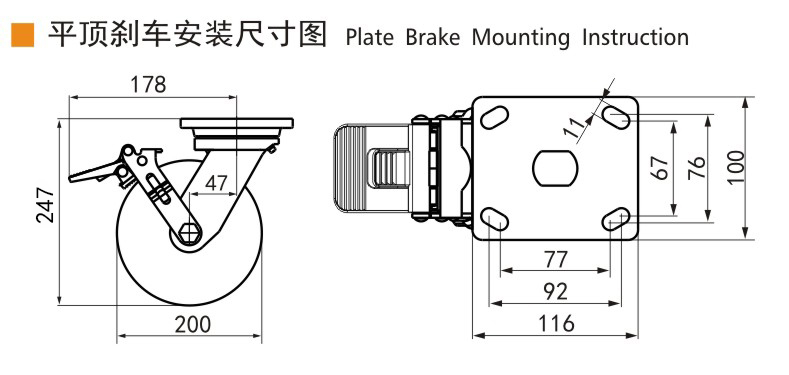

- Mounting Height ：247mm
- Frame Material：Hot-Rolled Plate
- Plate Thickness：9.5mm
- Brack Thickness：6mm
- Surface Treatment：Zinc Coating
- Bracket Width：61mm
- Wheel width：50mm

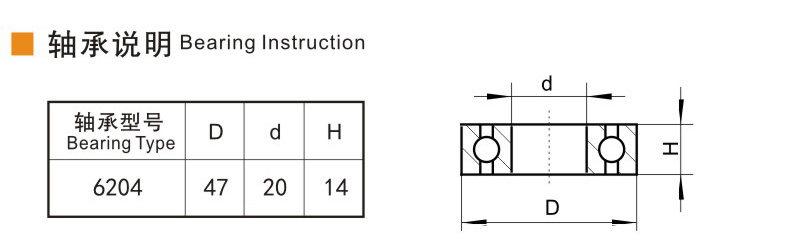

- Bearing：Double Ball Bearing
- Tread Color： Red
- Core Material：Aluminum
- Applicable Temperature：-20℃～80℃
- Tread Hardness：95A
